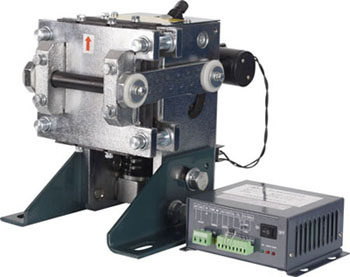

Electromagnetic Rope Gripper OX-250B

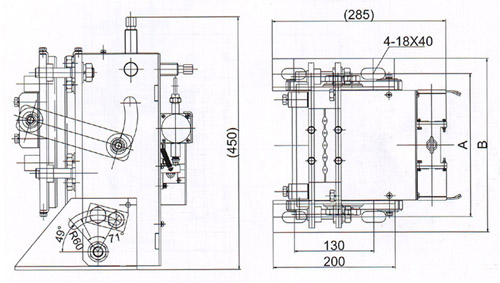

Installation Dimension for OX-250B-A



Specification:

Rated Speed

a)1:1 V≤2.5m/s
b)2:1 V≤1.25m/s

Rated Load Range

a)1:1 Q=320kg~1600kg
b)2:1 Q=640kg~3000kg

Total Weight

a)1:1 992kg~5425kg
b)2:1 1984kg~10850kg

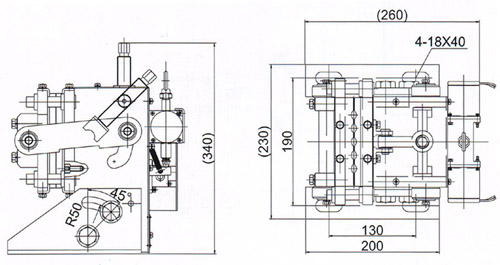

Installation Dimension for OX-250B-B



Specification:

ItemABWire Rope DiameterNumber of GrooveTraction Sheave Groove Specification
01235285≤16MM≤5≤25MM
02270320≤16MM6~8≤25MM

Rated Speed

a)2:1 V≤0.5m/s
b)4:1 V≤0.25m/s

Rated Load Range

a)2:1 Q=3000kg~5000kg
b)4:1 Q=6000kg~10000kg

Total Weight

a)2:1 5590kg~11500kg
b)4:1 11180kg~23000kg
